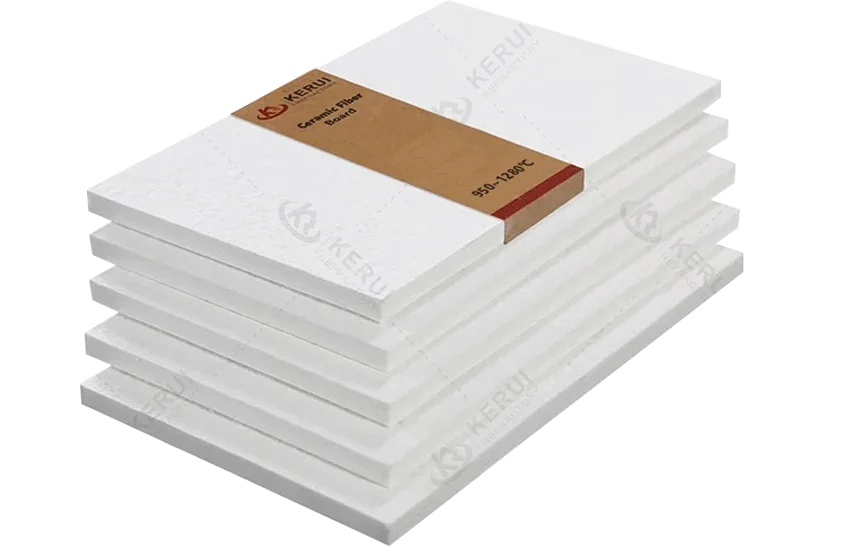

Ceramic Fiber Board
Ceramic Fiber Board is widely used in high-temperature equipment such as high-temperature reactors, distillation towers, cracking furnaces, heating furnaces, electric furnaces, cement rotary kilns, etc.
Modules of Rupture: ≥0.3MPa;
Bulk Density: 250-360g/cm³;
Classification Temperature: 1260-1430℃;
Loss of Ignition: ≤6%;
Technical Data of Ceramic Fiber Board
- Size: 1200/1000/900/600*1000/600/500/300*10-50mm (customizable)；
- Color: white;
- Packaging: packaged in pallet, inner plastic bag and outside carton box, or inner plastic bag and outside carton box, then on pallets;
- Sample: free sample to any country;
- MOQ: 1 piece;
- Delivery time: 3 days for common shape samples; 10 days for special shape samples; 7-15 days for batch goods.
| Item/Grade | STD Board | HP Board | HA Board | HZ Board | |
|---|---|---|---|---|---|
| Classification Temperature/℃ | 1260 | 1260 | 1350 | 1430 | |
| Bulk Density (kg/m³) | 250/300/360 | 250/300/360 | 300/360 | 300/360 | |
| Modules of Rupture ≥/MPa | 0.3 | 0.3 | 0.3 | 0.3 | |
| Compressive Strength/MPa (10% relative deformation) | 0.15/0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 | |
| Loss of Ignition ≤/% | 6 | 6 | 6 | 6 | |
| Permanent Linear Change ≤/% | 1000℃ x 24h 3.0 | 1100℃ x 24h 3.0 | 1200℃ x 24h 3.0 | 1350℃ x 24h 3.0 |
|
| Thermal Conductivity Coefficient /[W/(m·K)] | 400℃ | 0.08 | 0.07 | 0.07 | 0.07 |
| 600℃ | 0.11 | 0.1 | 0.1 | 0.09 | |
| 800℃ | 0.14 | 0.14 | 0.13 | 0.13 | |
| 1000℃ | 0.19 | 0.19 | 0.19 | 0.18 | |
Advantages of Ceramic Fiber Board
1. Lightweight High Strength;
2. High Compressive Strength;
3. Evenly Heated;
4. Good Toughness.
