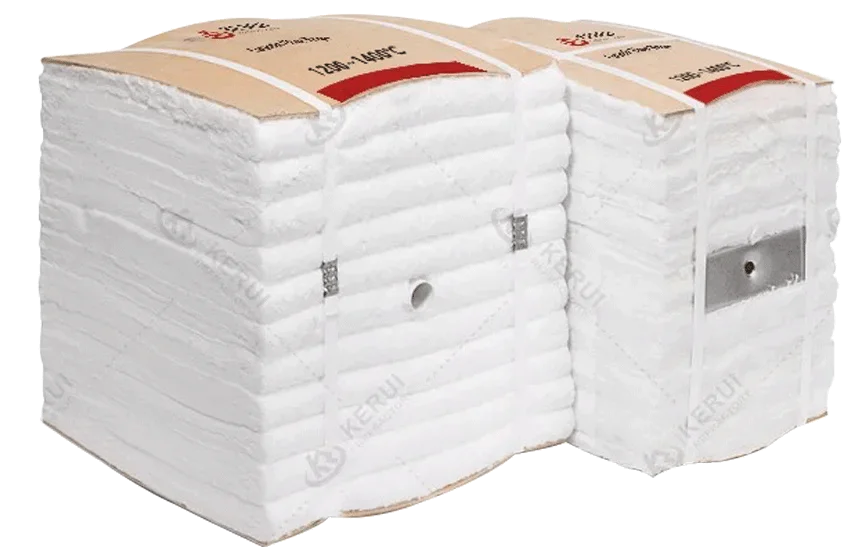

Ceramic fiber module is a modular insulation product made of folded ceramic fiber blanket. This product is easy to install and use, which greatly shortens the construction period. It is widely used in the lining of high-temperature kilns such as blast furnaces, crucible furnaces, melting furnaces, waste incinerators and exhaust gas treatment furnaces.
Ceramic Fiber Module for Sale
Technical Data of Ceramic Fiber Module
| Item/Grade | STD MODULE | HP MODULE | HA MODULE | HZ MODULE | |
|---|---|---|---|---|---|
| Classification Temperature/℃ | 1260 | 1260 | 1350 | 1430 | |
| Chemical Composition | ω (Al2O3) ≥/% | 43 | 44 | 52 | 35 |
| ω (SiO2) ≥/% | 54 | 55 | 47 | 49 | |
| ω (ZrO2) ≥/% | / | / | / | 15 | |
| Color | White | White | White | White | |
| Bulk Density (kg/m³) | 160-220 | 160-220 | 160-220 | 160-220 | |
| Permanent Linear Change ≤/% | 1000℃*24h 2.5 | 1100℃*24h 2.5 | 1200℃*24h 3.0 | 1350℃*24h 3.0 |
|
| Thermal Conductivity Coefficient/[W/(m·K)] | 400℃ | 0.1 | 0.1 | 0.1 | 0.1 |
| 600℃ | 0.18 | 0.17 | 0.16 | 0.15 | |
| 800℃ | 0.2 | 0.2 | 0.2 | 0.19 | |
| 1000℃ | 0.27 | 0.26 | 0.26 | 0.26 | |
Package and Delivery of Ceramic Fiber Module
Package: In box or pallets;
Delivery: Arrange immediate delivery for standard type in stock, 7-15 working days for customized type of ceramic fiber insulation products.
Good Properties of Ceramic Fiber Module
Extend the Service Life
The weight of ceramic fiber modules is more than half lighter than other shaped and unshaped refractory materials. This lightweight, energy-saving new insulation material can reduce the load on the kiln structure. Therefore, it can effectively extend the service life of the furnace.
Save Energy
According to the parameter table, we can know that the thermal conductivity of ceramic fiber blocks is extremely low, which can save energy by 30% or more compared with other refractory products and insulation materials. Therefore, it can not only reduce the energy loss in the operation of the kiln, but also save energy and production costs.
Easy to Use
For the construction of ceramic fiber modules, customers do not need to reserve expansion joints. Because the product itself has good expansion properties. Modular design allows workers to complete large-area laying in a short time. Learn more details about this product on Kerui Pinterest board.
Safe Production
Ceramic fiber modules are neutral and acidic insulation materials. Except for the use environment of strong acid and strong alkali, this product can maintain good performance. It will not be corroded by weak acid, alkali, water, oil, steam or other chemicals. This good sound insulation performance can block noise pollution and protect the working environment of workers.
Wide Range of Use
It can meet the needs of different grades from 600-1400℃. And it is not affected by the use environment. The thermal sensitivity of ceramic fiber furnace lining is excellent and it is more suitable for the fully automated control of industrial kilns.
Ceramic Fiber Module Manufacturer Service
Strict Quality Control
Kerui factory has more than a dozen quality control points to strictly inspect the raw materials and finished products of ceramic fiber. And we arrange secondary sampling to ensure that the ceramic fiber modules sold meet the highest quality standards.
Full Support of Products
In addition to high-quality ceramic fiber modules, Kerui also provides anchors, amorphous refractory linings, refractory bricks, insulation bricks and other series of refractory materials.
Technical Guidance
The installation of ceramic fiber modules is relatively simple, but in order to ensure its tight arrangement and good use effect, welcome to seek technical assistance from Kerui.
International Certificates
Ceramic fiber modules have passed various international certifications, including ISO/CE/SGS, etc. These international certificates are the key for customers to buy with confidence.
