Acid Resistant Bricks

Acid resistant bricks with SiO2 as the main component. It has excellent resistance to acidic chemical corrosion and mechanical stress. For the long-term operation and safety of acidic high-temperature kilns, acid-resistant bricks are the ideal choice for load-bearing structures and linings.

hot sale refractory

KERUI Acid Resistant Bricks

KERUI Acid Resistant Bricks

KERUI ISOKERUI CEKERUI SGS
Acid Resistance
≥99.8%
Bulk Density
2.31-2.4g/cm3
Water Absorption
≤2%
Customize
Yes
Free Sample
Yes
Available Surface
single/double sided grooves, glazed, plain

Parameters of Kerui Hot Sale Acid Refractory Bricks

When choosing acid-resistant bricks, many customers are most concerned about:

Is it acid-resistant? Can it bear weight? How long can it last?

These questions can be answered through parameters. Below are the key technical data of KERUI acid resistant bricks to help you determine whether it is suitable for your project.

ItemIndex
Acid Resistance ≥/%99.8
Bulk Density/ (g/cm³)2.31-2.4
Water Absorption ≤/%2
Bending Strength ≥/Mpa58.8
Compressive Strength/Mpa120
Thermal Shock Resistance ≥/Cycles (130℃-20℃)1

Comparison Between Plain and Glazed Surface

Different Surfaces of Acid Resistant Brick Plain Surface Glazed Surface
Cost Low Higher
Physical Bonding Better Good
Permeability Resistance Good Better
Hydrofluoric Acid Resistance Good Better
Cleaning Difficulty Diffcult Easy
Main Applications Wide, including storage tanks, reaction towers, floors and drainage ditches Special requirements, including pharmaceutical and food processing plants, high-standard laboratories and wall surfaces.

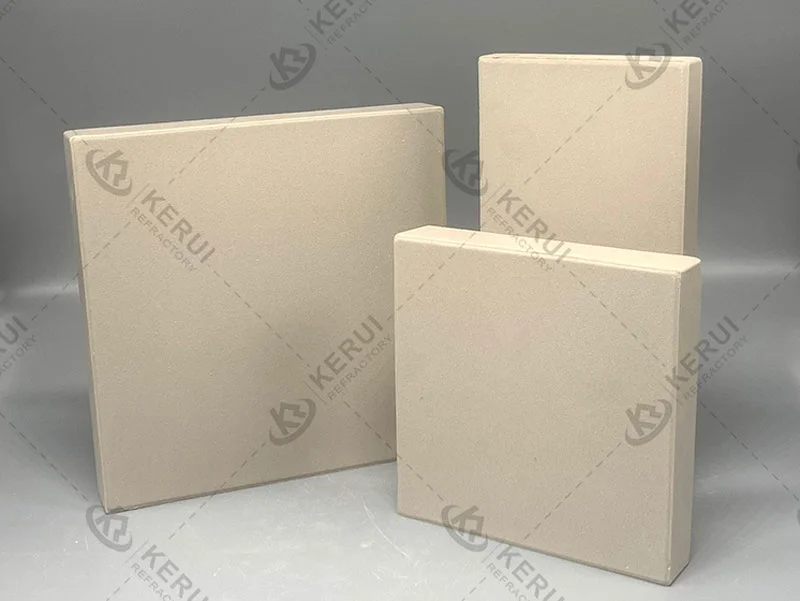

Plain Acid Resistant Lining
Plain Acid Resistant Brick

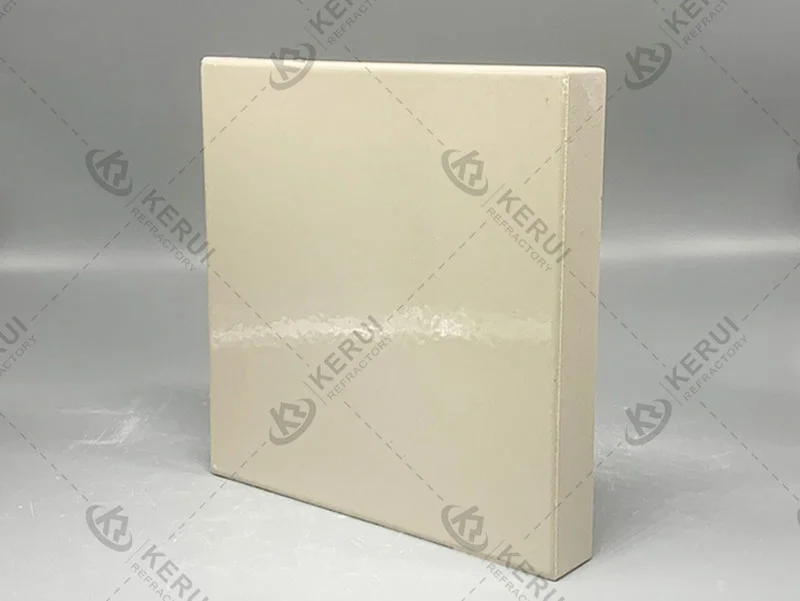

Glazed Acid Proof Brick
Glazed Acid Proof Brick

Size Selection of Kerui Acid Resistant Bricks

We should choose the size of acid proof bricks according to the place of use, working conditions and installation method. If the workplace is often splashed by chemicals, you need to choose thicker acidic bricks to increase their corrosion resistance. In addition, When we lay the bricks, we need to choose larger acid-resistant bricks to ensure the flatness and aesthetics of the floor. However, when we inlay, we may need to choose smaller acid resistant bricks.

Contact us for professional technical support and guidance. Kerui can recommend and customize the appropriate chemical resistant brick and basic refractory bricks size for you based on the working conditions of your industrial equipment.

Standard Sizes

  • 230*113*15/20/30mm
  • 230*113*40/50/60mm

Other Common Sizes

  • 150*75*15/20/30mm
  • 150*150*15/20/30mm
  • 200*200*15/20/30mm
  • 300*300*15/20/30mm

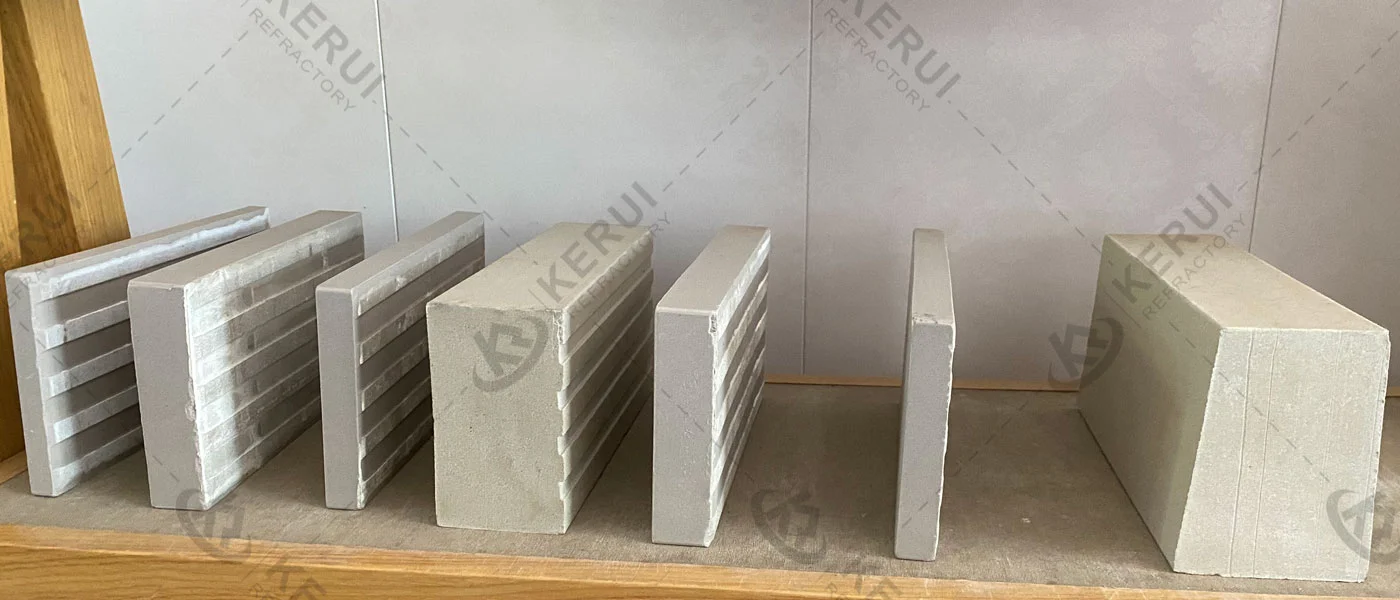

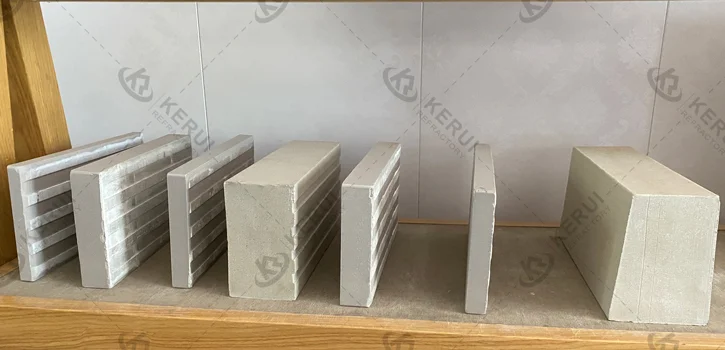

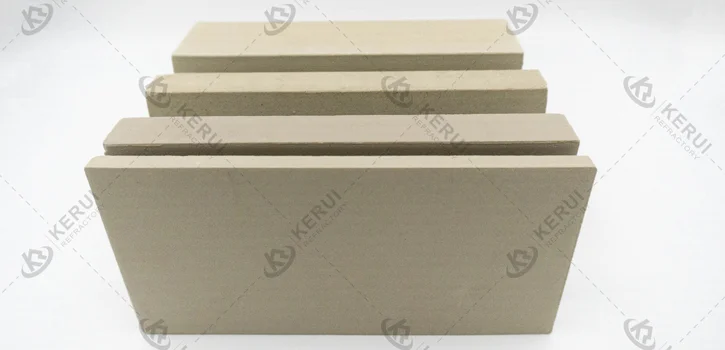

KERUI Standard and Customized Acid Proof Bricks for Sale
KERUI Standard and Customized Acid Proof Bricks for Sale

Features of KERUI Acid Resistant Lining Brick

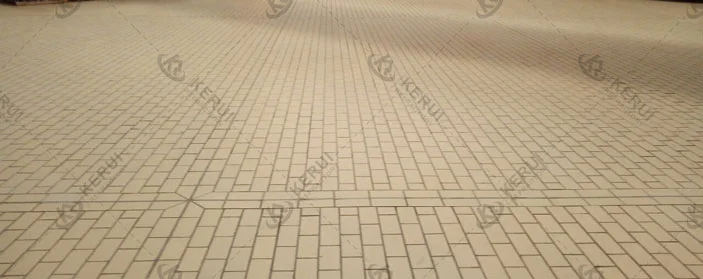

Strong Load Bearing Capacity

The acid resistant bricks are dense and durable. It is ideal for use in kiln bases, piers and other areas that require heavy loads. The compressive strength ensures stable support for the entire furnace structure.

Strong Load Bearing Capacity

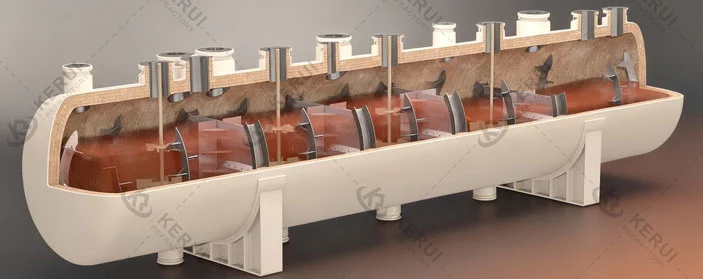

Outstanding Acid and Chemical Resistance

In kilns where acidic gases or molten materials may cause corrosion, acid resistant bricks effectively prevent damage and extend service life.

acid brick chemical resistance

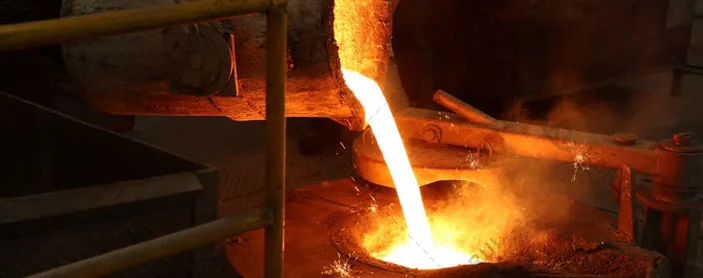

Stable Performance at High Temperature

This acid proof brick lining procedure maintains structural integrity under thermal cycling. It can ensure long-term reliability even in demanding firing conditions.

high temperature performance

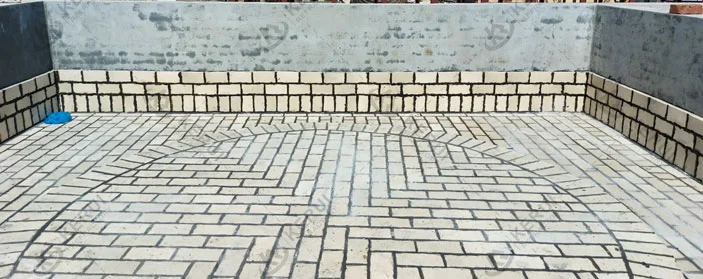

Versatile Lining Material

Acid brick linings are not only used as kiln linings but also as protective walls, floors, and flue linings where chemical attack is common.

wide uses of acid resistant brick

Application of Acid Proof Bricks

KERUI acidic bricks are widely used in industrial kilns and equipment exposed to acidic media corrosion. Their main function is to protect the foundation of the structure and the equipment itself from chemical corrosion, thereby extending the life of the facility and ensuring production safety.

Chemical Industry

Applications: Pickling tanks, electrolytic cells, reactors, chemical plant floors, trenches, etc.

Reason: In pickling workshops or chemical plants, floor pits are directly exposed to splashes or leaks of acidic liquids. Laying acid-resistant bricks to protect the tank or floor effectively creates a safe construction environment.

Petroleum Industry

Applications: Linings of acidic storage tanks, reactors, heat exchangers, and absorption towers.

Reason: For equipment exposed to acidic gases and liquids. It is recommended to use acid proof bricks as a protective lining. This is crucial for effectively preventing acid or oil leaks and protecting the shell from damage.

Metallurgical Industry

Applications: Acid regeneration plants, flue gas purification systems (desulfurization towers).

Reason: In steel, aluminum, and copper smelters, flue gases contain acidic gases such as sulfur dioxide. Desulfurization tower linings must be made of acid-resistant bricks to resist sulfuric acid corrosion.

Power Industry

Application: Flue Gas Desulfurization (FGD) Systems.

Reason: This is one of the most classic and important applications for acid-resistant bricks. After desulfurization, the flue gas generated by coal-fired power plants is subjected to extremely corrosive conditions such as low temperature, high humidity, and dilute sulfuric acid. Acid-resistant bricks, combined with water glass mortar, are required to ensure the long-term safe operation of the desulfurization tower.

Wastewater Treatment

Application: Sewage tanks, neutralization tanks, aeration tanks.

Reason: Industrial wastewater often contains various organic and inorganic acids. Concrete tanks used to treat these acidic wastewaters must be lined with acid-resistant bricks for corrosion protection.

Other Industries

Application: Pharmaceutical, fertilizer, paper, and electroplating industries, among others.

Reason: Acid-resistant bricks are required for protection in any production, storage and transportation process involving acidic corrosive media.

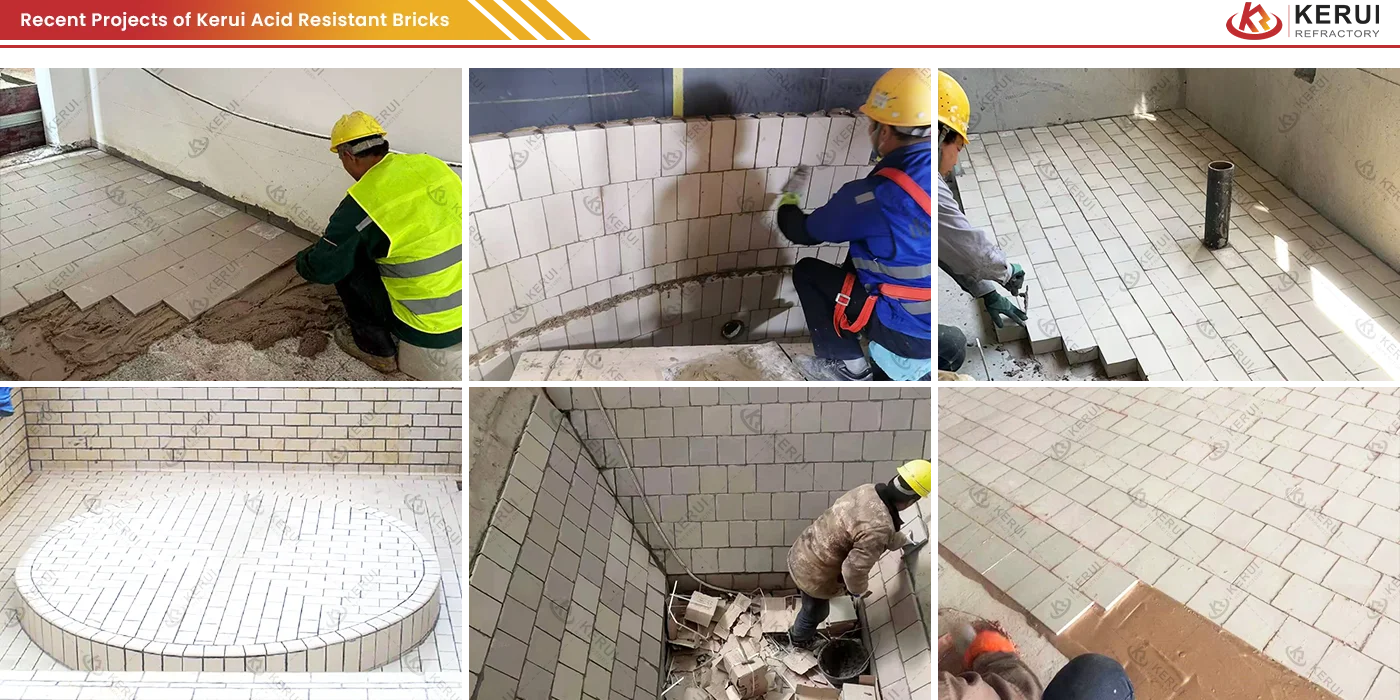

Recent Cases of Acid Resistant Lining

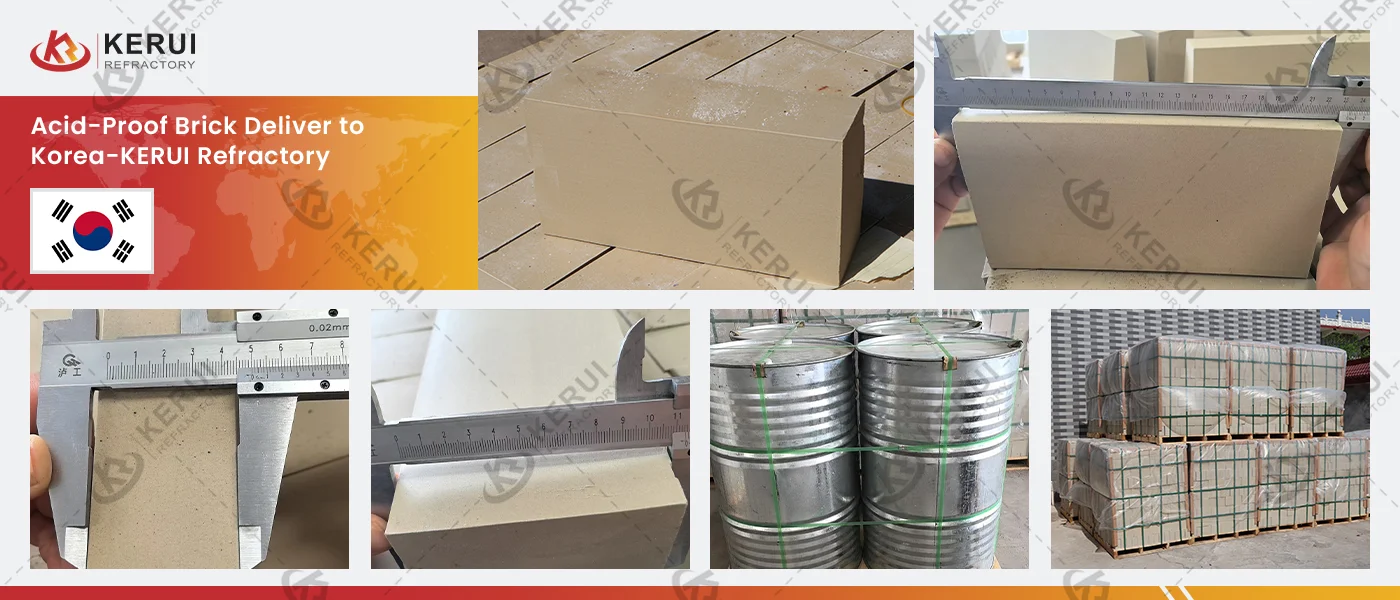

Acid Resistant Brick to South Korea

Acid Resistant Brick to Algeria

Acid Resistant Brick to Saudi Arabia

Professional Acid Proof Bricks Supplier – Kerui Refractory

Provide Acid Resistant Brick Ex-Factory Price

Compared with other brands in the same industry, the ex-factory price of Kerui acid proof bricks has a significant price advantage. Through bulk purchases and long-term cooperation, Kerui refractory company also provides customers with more discounts. In other words, we ensure that our customers can get high quality acid resistant bricks at a reasonable price.

Meeting the Diverse Needs of Customers

As acid proof bricks manufacturers, Kerui is well aware that each industry has different specific requirements for refractory bricks. Therefore, we can provide customized solutions based on the actual needs of customers. For example, we can customize refractory bricks according to acidic environments, corrosive media, high temperature, high pressure conditions, etc.
