The silica refractory brick is an acidic refractory material with strong resistance to corrosion by acidic slag or solution. This product has a high load softening temperature, so it can effectively extend the service life of the kiln and production efficiency. Currently, Kerui’s silica brick customers cover more than 50 countries and regions around the world, including Russia, the Philippines, Fiji, Türkiye, Saudi Arabia, UAE, Kuwait, Morocco, Thailand, Armenia, Denmark, Mexico, Sri Lanka, etc.
Silica Refractory Brick for Sale
Technical Index of Kerui Silica Refractory Brick
Silica refractory bricks are essential for high-temperature kilns and furnaces. Made primarily from SiO2, with a typical silica content exceeding 94%, these bricks are designed to withstand extreme conditions. Kerui silica refractory lining bricks are renowned for their performance in high-temperature environments. Continue reading to discover more about their benefits and applications.
| Item | GZ-94 | GZ-96 | |
|---|---|---|---|
| SiO2, % | ≥ | 94 | 96 |
| Fe2O3, % | ≤ | 1.4 | 1.0 |
| Apparent Porosity, % | ≤ | 22 | 22 |
| Bulk Density, g/cm³ | ≤ | 2.35 | 2.34 |
| Cold Crushing Strength, MPa | ≥ | 30 | 40 |
| 0.2MPa Refractoriness Under Load, ℃ | ≥ | 1650 | 1670 |

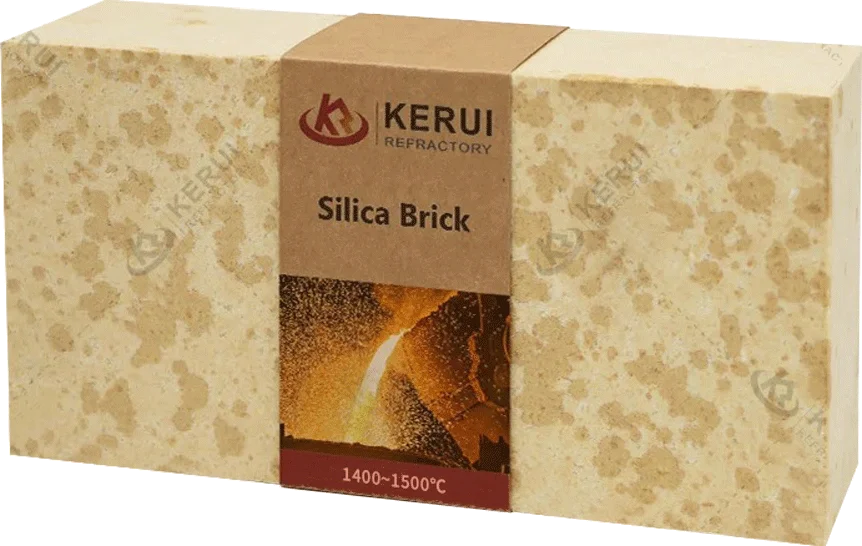

Will the Spots on Silica Brick Surface Affect the Quality?
Not at all!
The main raw material of silica bricks has a high expansion coefficient. In order to ensure that the silica bricks do not crack during use, Kerui will ensure that its crystal form is completely transformed. The spots on the surface of the silica bricks we see are the residues after the crystal form is completely transformed. This has no effect on the quality of the product!
Silica Bricks Price from China Factory
Kerui ensures competitive silica bricks price which is direct from factory! As an original manufacturer in China, Kerui continuously optimizes production process and economies of scale to effectively control costs. Although we provide affordable silica bricks, we never slack off on quality. Every silica brick meets the highest standards and is internationally certified such as ISO/CE/SGS!
What’s more, Kerui offers extra discounts for customers who purchase in bulk or have long-term cooperation!
Introduction of Silica Refractory Brick Properties
Chemical Erosion Resistance
Due to its high-quality raw materials. Kerui silica bricks have good resistance to the erosion of acidic slag. Therefore, this product is suitable for kilns with strong acidic atmospheres, including glass kilns, coke ovens, hot blast furnaces, etc. Welcome to explore more info on Kerui LinkdeIn.
Good Thermal Vibration Stability
During the operation of high-temperature kilns, it is inevitable to face periodic temperature changes. Silica bricks can maintain a stable structure in the face of strong temperature changes, thereby extending the service life of the kiln.
High Temperature Volume Stability
Kerui silica bricks have a high load softening temperature. This also means that using silica bricks as kiln linings can well withstand the pressure of the furnace wall and furnace top without deformation. This high temperature volume stability is the key to maintaining the safety and stable operation of the kiln.
Main Uses of Silica Fire Brick
Coke Oven
Coke oven is mainly used for burning coal, and silica brick lining can withstand the acidic atmosphere and slag erosion. Usually customers use silica brick to build the heat storage chamber, ramp, combustion chamber, carbonization chamber and furnace roof of coke oven.
Hot Blast Furnace
Silica bricks are used to build the high-temperature parts of hot blast furnaces. With the continuous development of hot blast furnaces and the increase in wind temperature, traditional alumina bricks can no longer meet the demand. Silica bricks specially used for hot blast furnaces have better thermal shock resistance and chemical corrosion resistance.
Glass Kiln
The silica bricks for glass kilns are often used in vaults, breast walls, heat storage chambers, etc. In order to achieve good heat storage effect and high temperature resistance, silica checker bricks are also very common in glass kilns.
Other Common Uses of Silica Refractory Brick
Steel-making electric furnace, open hearth furnace, ceramic kiln, non-ferrous metal smelting furnace and other kilns that need to face strong acidic atmosphere corrosion. This product has excellent high temperature bearing performance.
Silica Brick Manufacturer in China – Kerui Refractory
Full Product Range
With more than 20 years of production experience, we provide a variety of refractory bricks. We provide refractory bricks, lightweight insulation bricks, monolithic refractory materials, ceramic fiber insulation products, etc. according to customer project conditions. Want to get a quote today? Tell us the type and quantity of products you need now!
Advanced Production Technology
The newly upgraded fully automatic refractory brick production line, and master high-quality quartz raw materials and advanced silica bricks manufacturing process. The fully automatic production line can greatly improve work efficiency and maintain the consistency of product quality.
Technical Guidance
From the scheme matching to the product selection and use guidance, Kerui professional technical engineers will provide guidance. Here are some pictures of communicating technical solutions in Kerui factory and guiding customer installation on site. If you have any needs, please contact Kerui!
Welcome to Visit Kerui Silica Brick Factory
Kerui factory is located in Xinmi City, Henan Province China. Here you can see the video about Kerui factory. Kerui welcomes everyone to visit the factory at any time!
